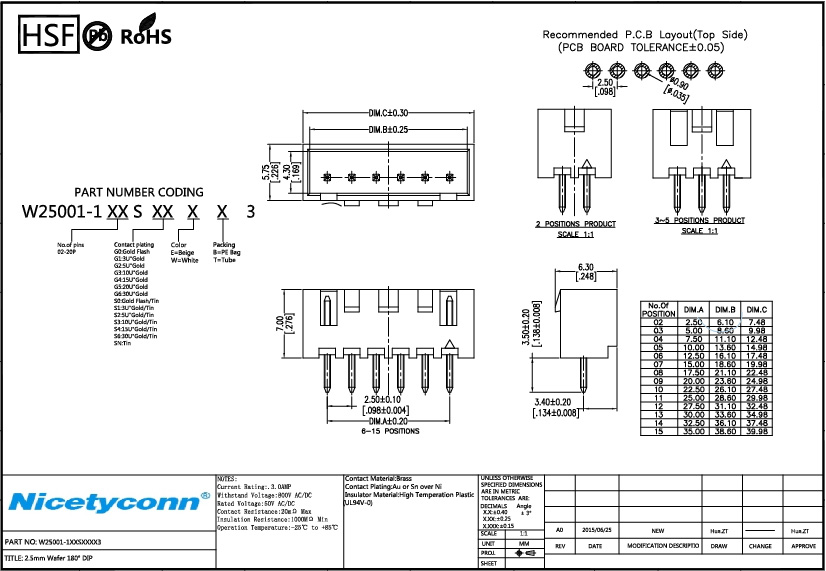

2.5 mm Pitch 180 Degree Straight Type Wafer with White Colour |
|
Specification: |
|
Current Rating: 3.0AMP |
|
Withstand Voltage: 800V AC/DC |
|
Rated Voltage: 50V/AC/DC |
|
Contact Resistance: 20mΩ Max |
|
Insulation Resistance: 1000MΩ Min |
|
Operation Temperature: -25oC to +85oC |
|
Insulation Material: high-temperature plastic(UL94V-0) |
|
Contact Material: brass |
|
Contact Plating: Au or Sn over Ni |
